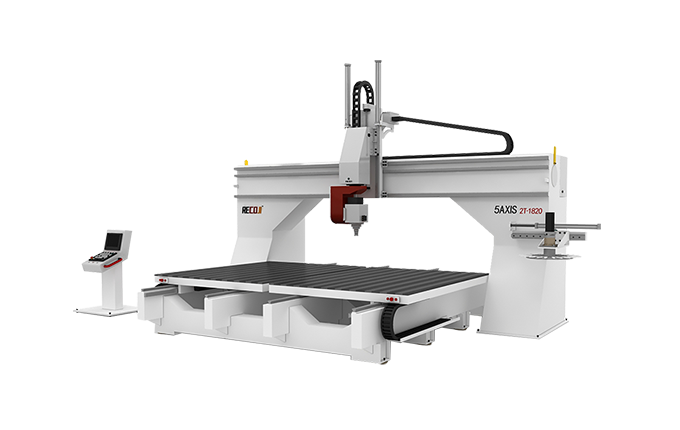

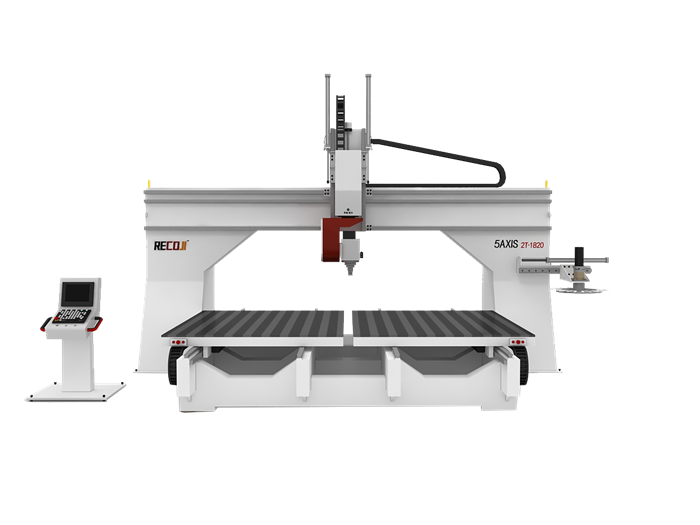

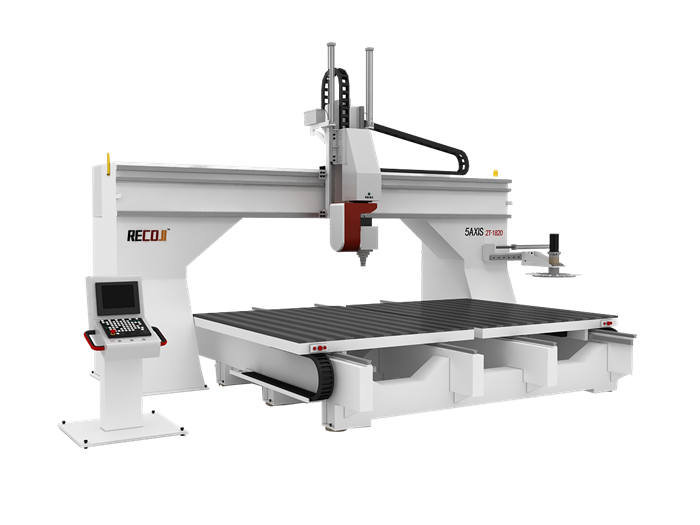

RJ2030-2T 5 AXIS CNC MACHINE CENTER

It is widely used in the industry of solid wood furniture, mold making, edge milling and chamfer of household appliances, bathroom , PVC/PP/PE, ABS, rubber, plastic polyurethane, carbon fiber and other composite material. It can finish slotting, chamfer, milling, grooving, etc.

Get Quote

Product Feature Technology Parameter Accessory Video Live show Sample

Application

It is widely used in the industry of solid wood furniture, mold making, edge milling and chamfer of household appliances, bathroom , PVC/PP/PE, ABS, rubber, plastic polyurethane, carbon fiber and other composite material. It can finish slotting, chamfer, milling, grooving, etc.

Product Feature

①　Unique design of external protection cover has the function of safe protection and dust collection.
②　This is an heavy-duty type five axis CNC machine center, adopting gantry moving design, working efficiency will be improved by table moving.
③　The best working performance will be enjoyed by using high quality 5 axis head, high precise rack and servo motor system.
④　Double working table and single working table( optional ) is available.
⑤　Fixture can be customized to your product.

Product Name	RJ2030-2T 5 AXIS CNC MACHINE CENTER
Model	RJ2030-2T
Working stroke （X、Y、Z）	3000mm X 2000mm X 800mm
Structure	After sand blasting, stress relief annealing treatment, CNC gantry is milled by the machining center at one time
Five-axis head	DEMAS five-axis head
Spindle	Italy HITECO spindle
Spindle power	10-12KW
Ball screw	TBI
Guide rail	Taiwan dust-proof mute high precise guide rail
Rack	Taiwan KH/German screw rack
Control system	Taiwan SYNTEC system with RTCP
Motor system	YASKAWA servo motor
Working table	Cast aluminum vacuum absorption Double moving table
Lubrication	Auto lubrication system
Safe protection system	Overtravel protection/emergency stop protection/limit limit/air pressure alarm/electrical protection/leakage protection

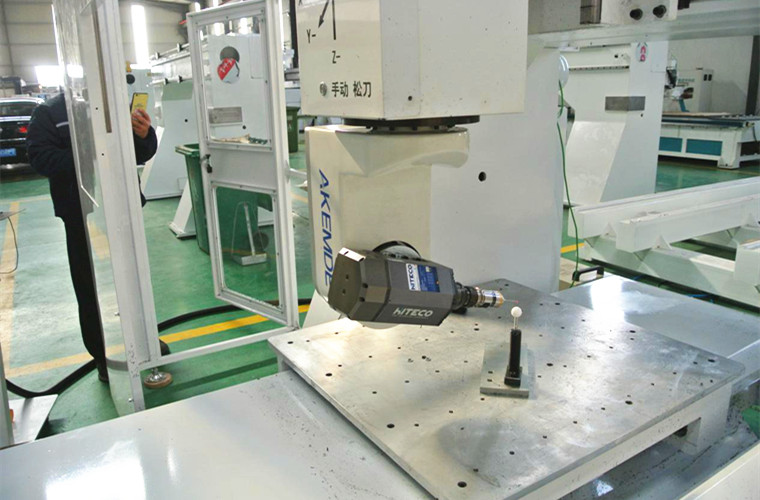

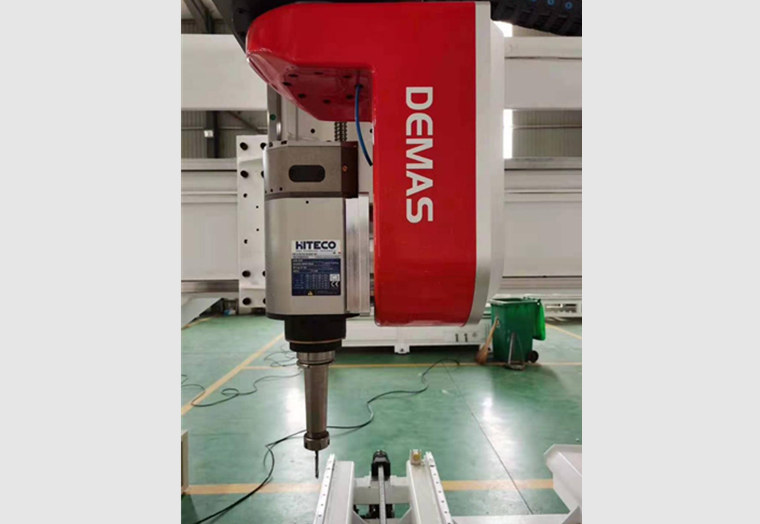

5 Axis Mechanical Part

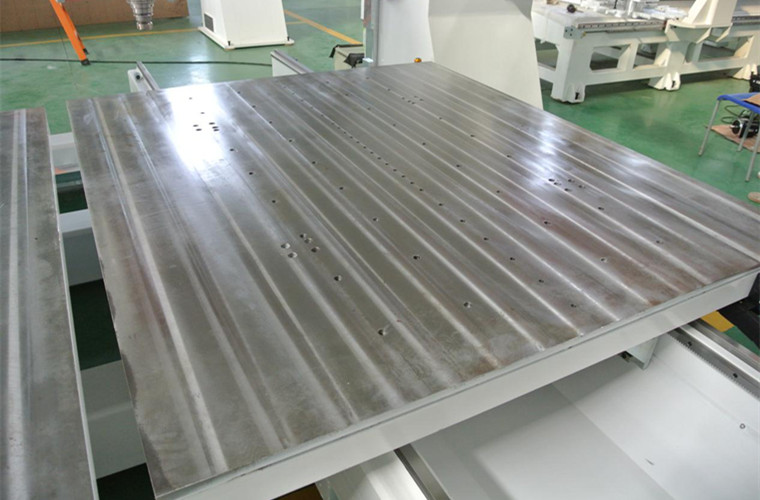

Cast Aluminum Vacuum Absorption Working table

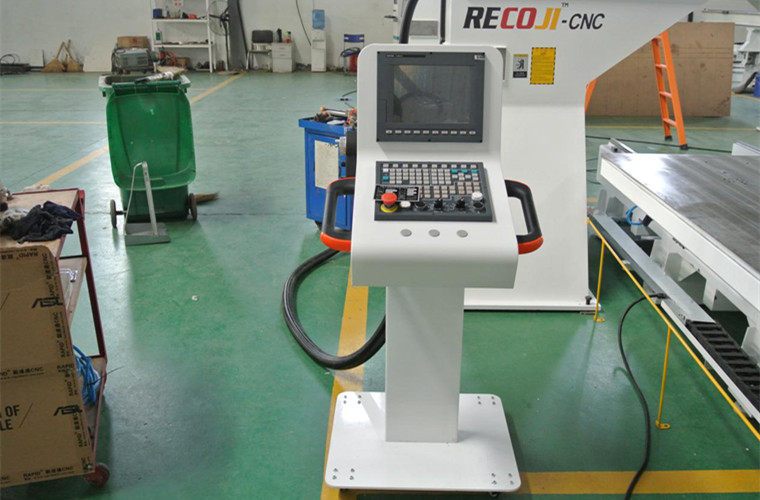

SYNTEC 5 axis control system

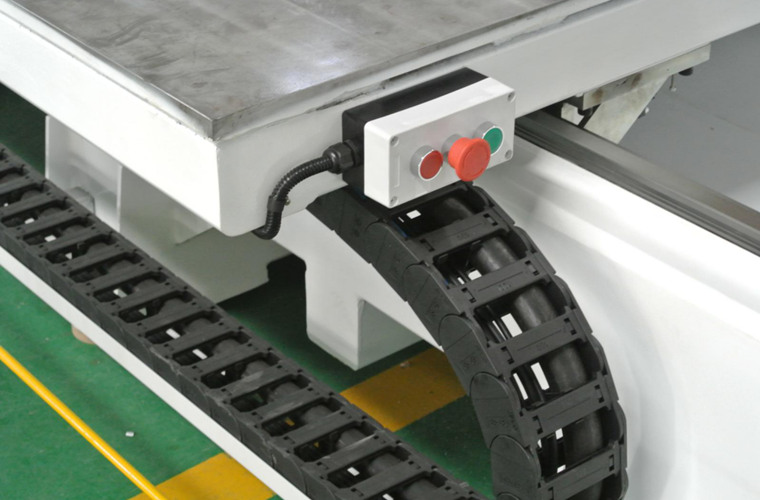

Emergency stop switch

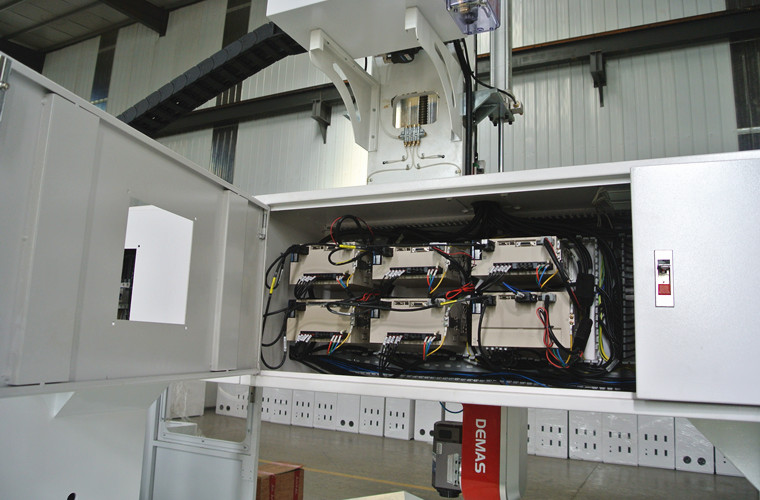

YASKAWA servo system

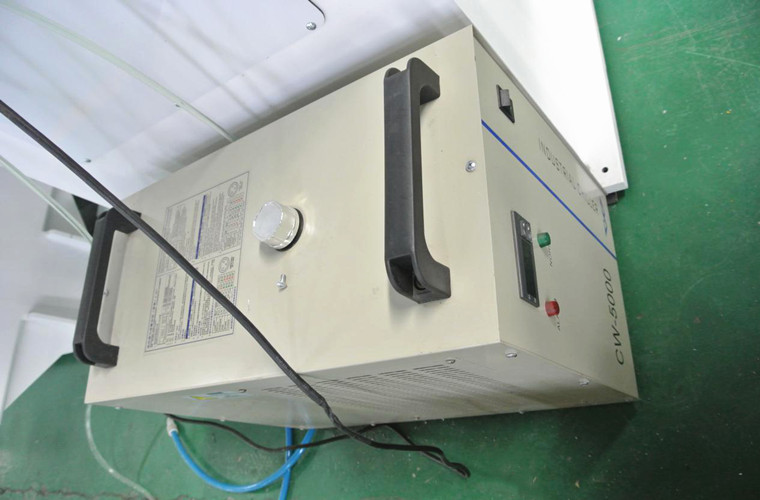

CW5000 Chiller

RJ2030-2T 5 AXIS CNC MACHINE CENTER
